Metal Plate Panels
Metal Plate Panels
Plate panel systems include wall panels, sunscreens and column covers, among others, and are designed to offer flexibility and versatility.
Flat, curved and multi-geometrical design elements such as soffits, cornices, window sills, column covers and beam wraps, are ideal applications for Plate Panels.
PLATE PANELS SYSTEMS:
Plate Panels can have similar application to ACM Panels. The joint / reveal can be customized much the same way, with a Caulk, Gasket, or Extrusion System.

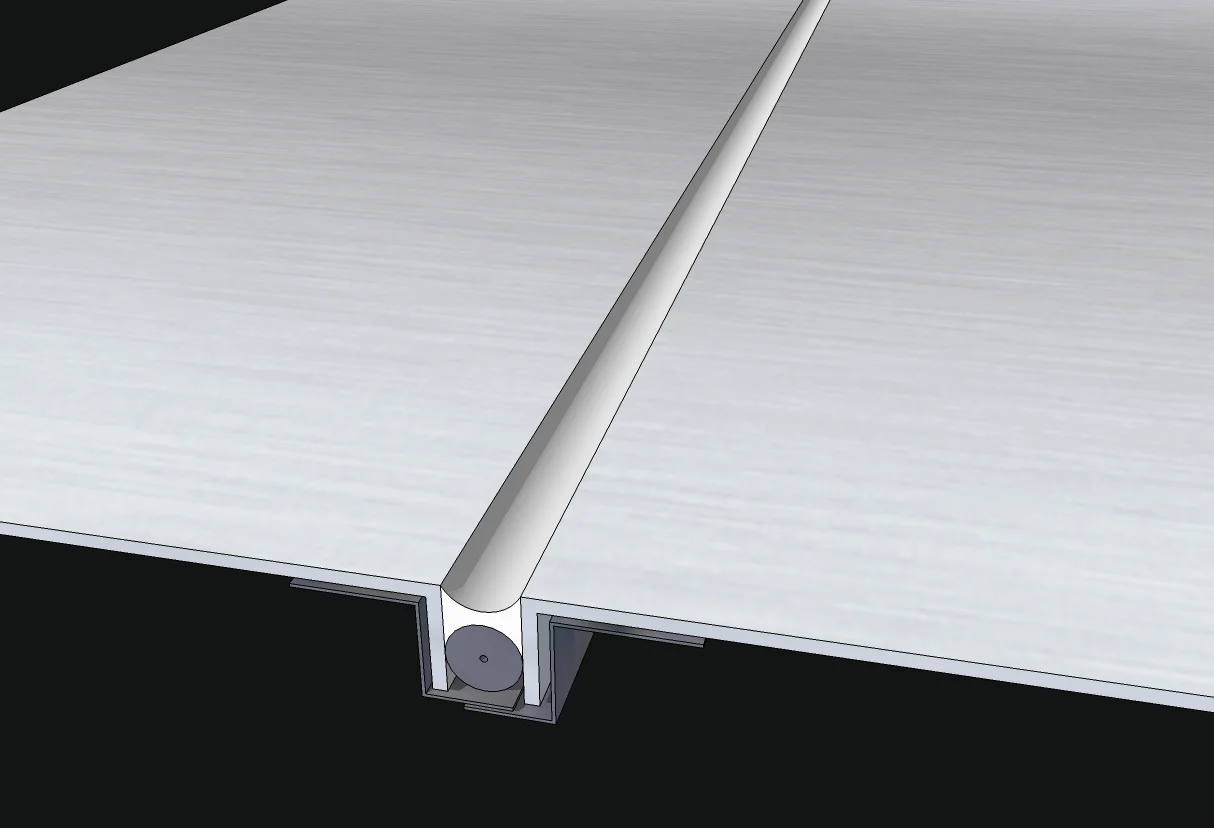

CAULK SYSTEM
Plate panel system with backer rod and caulked joints. (Wet System)
GASKET SYSTEM
Plate panel system with joints sealed and finished with a silicone gasket.

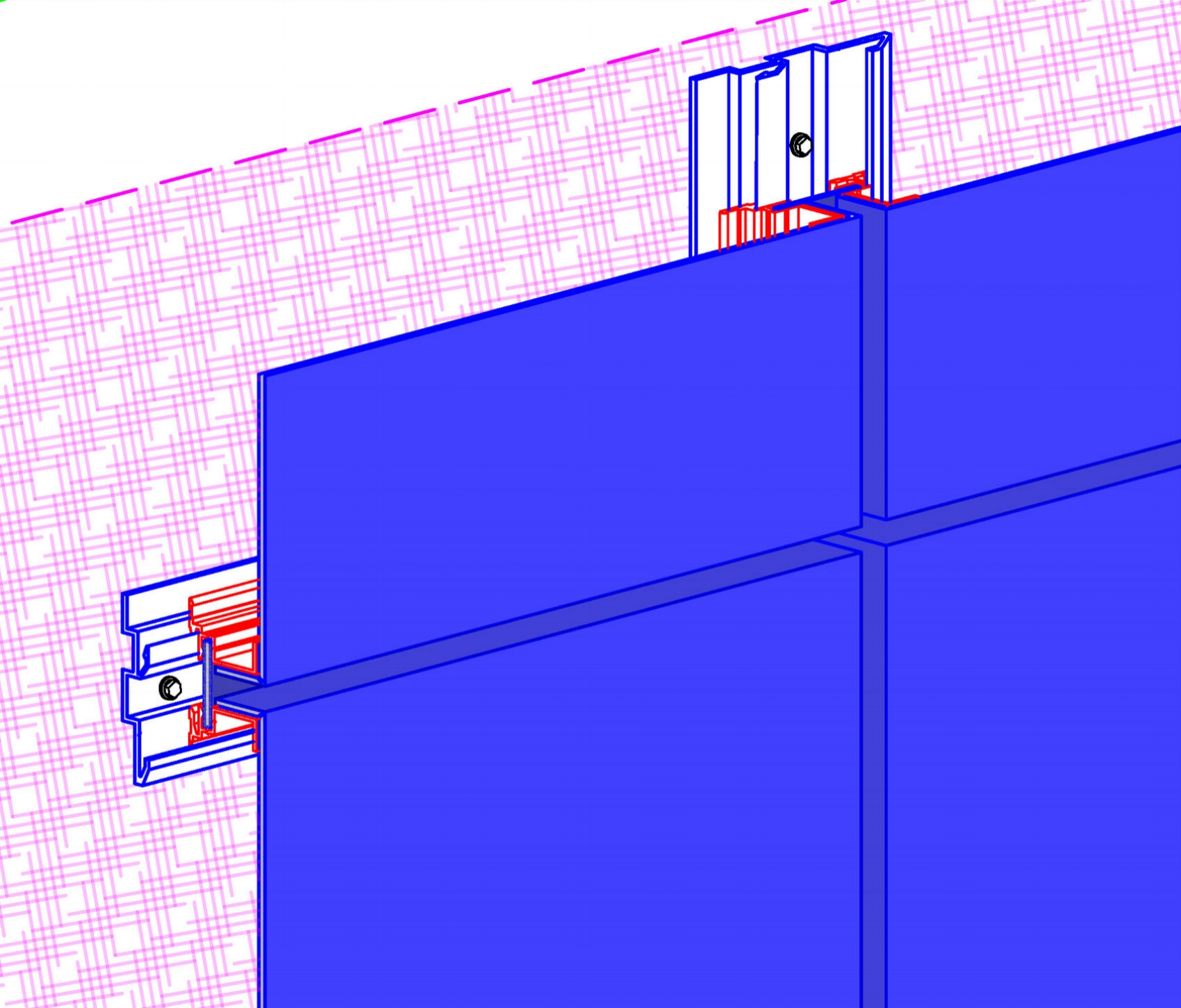

EXTRUSION SYSTEM
Plate panel system with extruded components. (Dry System and Rain Screen)
QUICK FACTS:
- Cladding systems
- Infill panels for curtain wall systems
- Exterior building cladding
- Flat, curved and multigeometrical design elements such as soffits, cornices, windowsills, column covers, beam wraps
- Cladding for canopies and building entrances
- Variety of colors
- Architectural detailing capability
- 30 year finish warranty
THICKNESS:
- 1/8″ thick material
- Panel depth 1-2.5″
FEATURES:
- Bent, radiused, irregular, & complex shapes
- Excellent interface with surrounding construction
- Flatness
- Flexible design parameters
- Non-sequential installation
